Ball valve features a spherical disc to open and close the flow of the fluid. They are the industry standard for pipeline shut-off applications, as their design guarantees very tight and leak-free sealing even after years of operation. The two key types of ball valves are the floating and the trunnion designs (side or top entry). The body can be cast or forged and monolithic or split (in 2 or 3 pieces). The API 6D and ASME B16.34 are key specifications.

Product Information / Product Description / Basis Information / Specification

Material List Grade

High Temperature Material CF8, 304, 304H CF8M, 316, 316H CK-20, 310, 310H WC4, WC5, F2, WC6, F11C1.2, F12C1.2, WC9, F22C1.3, C5, F5, WC4, WC5, F2, WC6, F11C1.2, F12C1.2, WC9, F22C1.3, C5, F5

Low Temperature Material A352 LCB, LCC, LC1 LC2, LC3, LC4, CF8M, CF8, CF3M

Alloy Material: Bronze, IN Conoy, DUPLEX SS, Alloy 20, Hastelloy C 276, Hastelloy B

Technical Pressure Test

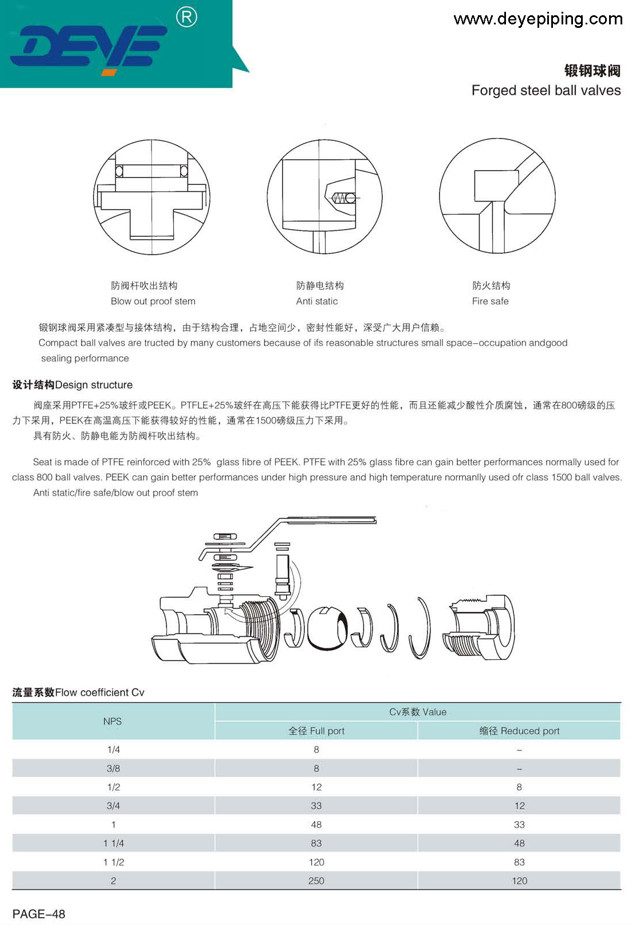

Ball Valves catalogue pages/Dimension List

Application:

Valve is a universal component industrial product that is widely used in many industries, such as petroleum, petrochemical, chemical, metallurgy, power, water conservancy, urban construction, machinery, coal, food, Sea water, 0il Refining, environment, energy.

Steam, LPG.

Reference Standard:

API 600: cast carbon and alloy valves

API 603: stainless steel valves

API 602/BS 5352: forged valves

API 6D: slab and through conduit valves for pipelines

API 598 and BS EN 12266-1: valves testing

ASME B16.10: face to face dimensions for valves

ASME B16.5 and ASME B16.47: flanged connections

ASME B16.25: butt weld connections design

ASME B16.34: Pressure ratings pressure and temperature ratings by material grade

ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances

and designation.

ISO 4200:1991, Plain end steel tubes, welded and seamless — Dimensions.

ISO 5208:1993, Industrial valves — Pressure testing of valves.

ISO 5209:1977, General purpose industrial valves — Marking.

ISO 5210:1991, Industrial valves — multi-turn valve actuator attachments.

ISO 5752: — 1), Metal valves for use in flanged pipe systems — Face-to-face and center-to-face dimensions.

ISO 6708:1995, Pipework components — Definition and selection of DN (nominal size) .

ISO 7005-1:1992, Metallic flanges — Part 1: Steel flanges.

ISO 7268:1983, Pipe components — Definition of nominal pressure.

ASME B1.1:1989, Unified inch screw threads (UN and UNR thread form) .

ASME B1.5:1988 (R1994), Acme screw threads.

ASME B1.8:1988 (R1994), Stub Acme screw threads.

ASME B1.12:1987 (R1992), Screw threads — Class 5 interference — Fit thread.

ASME B1.20.1:1983 (R1992), Pipe threads, general purpose (inch) .

ASME B16.5:1996, Pipe flanges and flanged fittings.

ASME B16.34:1996, Valves — Flanged, threaded and welding end.

ASME B18.2.2:1987 (R1993), Square and hex nuts (inch series) .

ASTM A193:1996, Specification for alloy steel and stainless-steel bolting materials for high-temperature service.

ASTM A194:1996, Specification for carbon and alloy steel nuts for bolts for high-pressure and high-temperature

service.

ASTM A307:1994, Specification for carbon steel bolts and studs, 60 000 psi tensile strength.

MSS SP-55:1985 (R1990), Quality standard for steel castings, visual surface examination.

1) To be published. (Revision of ISO 5752:1982)
