DSS SDSS SS Slip On Flanges With Pressure Rating 150lbs PN16

DSS Flanges means duplex stainless steel flanges i.e. UNS31803 flanges and 2205 flanges, and SDSS is short for Super duplex Stainless steel Flanges, Duplex Stainless Steel (DSS) has a matrix consist of austenite and ferrite in approximately same volume. DSS has both excellent corrosion resistance and high mechanical strength. Therefore DSS flanges are suitable for sever environments like subsea piping system of corrosive oil and gas.SDSS has a better corrosion resistance than DSS and is therefore widely used in desalination, offshore oil and marine heavy industry. We offer super duplex pipes, super duplex fittings, UNS32750, SAF2507, A182 F55, A182 F53 flanges and more.

Product Information/Product Description/Basis Information/Specification

Flanges Specification and different types

ASME/ANSI B16. 5:

WELDING NECK FL ANGE, SLIPON FL ANGE. BLIND FLANGE. HIGH HUB BLIND FLANGE.

SOCKET WELD FL ANGE. LAPJOINT FLANGE,THREADED FL ANGE. RING TYPE JOINT FLANGE.

Pressure Class: 1 50.300,400. 600.900,1500,2500

ASME/ANSI B16.47 :

WELDING NECK FLANGE, BLIND FLANGE.

Pressure Class: 75,150. 300, 400.600,900

ASME/ANSI B16.36:

ORIFICE FLANGE WELDING NECK FL ANGE, SLIPON FLANGE,THREADED FLANGE.

Pressure Cass: 300, 400,600,900, 1500,2500

AWWAC207

AWWA standard steel-ring flanges, Class B* (86 psi)

AWWA standard steel-ring flanges, Class D* (175-150psi)

AWWA standard steel-hub flanges, Class D* (175-150 psi)

AWWA standard steel-hub flanges, Class E* (275psi)

AWWA standard steel-ring flanges, Class E* (275psi), Blind flanges 275PSI

AWWA standard steel-ring flanges, Class F* (300psi), Blind flanges 300PSI

MSS-SP-44

WELDING NECK FLANGE, BLIND FLANGE TO ANSI B16.47 SERIES A

Pressure Class: 75,150. 300, 400.600,900

JIS B2220/B2291 :

WELDIG NECK FLANGE, SLIPON HUB FLANGE SLIPONPLATE FLANGE, SHUT OFF FLANGE,

SQUARE FLANGE.

Pressure Class:5K.10K 16K 20K 30K

BS4504SEC3.1

WELDING NECK FLANGE (111/134). HUBBED SLIPON FLANGE (112),

HUBBED THREADED FLANGE (113). LAPPED PIPE END FLANGE (133) PLATE FLANGE (101).

LOOSE PLATE FLANGE (102) LOOSE PLATE WITH WELD-NECK FLANGE (104). BLANK FLANGE

(105).

Pressure Class: PN2.5 TO PN 40

BS1560:

WELDING NECK FLANGE. SOCKET WELDING FLANGE SLIP-ON BOSS FLANGE BLIND FL ANGE,

SCREWED BOSS FLANGE, LAPPED FLANGE.

Pressure Class: 150,300,400,600,900, 1500,2500

BS 10:

WELDING NECK FL ANGE. PL ATE SLIP-ON FLANGE. SCREWED, BOSS FLANGE,

SLIPON BOSS FLANGE, BLIND FLANGE.

Table: D.E,F,H

DIN FLANGE:

DIN2573.DIN2576.DIN2641891 DIN2642. DIN2655. DIN2656, DIN2632 DIN263.DIN2634.

DIN2635.DIN2636. DIN2637.DIN2638.DIN2673

Pressure from PN 6 TO PN320

AFNOR NFE 29-203:

PLATE FLANGE (01), LOOSE PL ATE FLANGE (02,03.04) BLIND FLANGE (05)

WELDING NECKFLANGE (111), HUBBED SLIP ON FLANGE (12) SCREWED FLANGE (13).

HUBBED SOCKET WELDING FLANGE(14),LOOSE HUBBED FLANGE(15),

INTEGRAL FLANGE (211)

Pressure Class: ISO- PN 2.5TO PN420

EN 092-1.

PLATE FLANGE SO (Type 01) LOOSE Plate flanges (Type02, 04) Blind flange (Type 05),

Welding Neck flange (Type 11), Hubbed Slip on Flange (Type 12), Screw Flange (Type 13),

Integral Flange (Type 21)

Pressure Class: PN2.5 to PN100

ASME/ANSI B16.9/MSS SP-43: STUB END. Type: A,B,C

UNI2253-67,UNI6091-67,UNI2276-67,UNI2280-67,UNI6089-67 PN6,PN10,PN16,PN25,PN40

GOST 12820-80,GOST 12821-80,Gost Blind

PN6,PN10,PN16,PN25, PN40, PN63, PN100, PN150,PN250

SABS1123

Technology/ How to use and install the different flange types

WELDING NECK FLANGES

They are connected to the pipe by means of a Butt weld connection. They are

used when X-ray testing is required or if the torque over unions are maximum.

Its long tapered neck optimizes the stress distribution

SLIP-ON FLANGES

This kind of flanges are installed with two weld bead, sliding the pipe inside.

Thus installation costs are lower, so less accuracy is required for pipe cutting.

THREADED FLANGES

They are usually installed with the pipe previously threaded, in places where

welding cannot be done. We do not recommend to install if there are high

pressure variations in the system

LAP JOINT FLANGES

They slide on an overlapped gasket. They are commonly used where it is

necessary to dismantle in order to be cleaned or repaired. Dismantling cost

decreases due to the ease of flange turning and drilling alignment.

.

SOCKET WELD FLANGES

This kind of flange is especially designed for lower small diameters and high

pressures. The pipe is inserted into the flange up to the seat and then is fillet

welded against the cube.

BLIND FLANGES

Blind flanges are utilized for pipe ends, and they bolted to any of the above

flange types.

The stainless steel material that normally used

Material Grades: Chemical Composition

physical properties

SAF2205 (UNS31803)

Chemical Composition%

physical Performance

SAF2507(UNS32750)

Chemical Composition%

physical Performance

Flange Production Process/ Manufacture Prodcedure

Application/Usage

A flange is a method of connecting pipes, valves, pumps, and other equipment to form a piping system to convey the water, steam, air, gas and oil. It also provides easy access for cleaning, inspection, or modification.

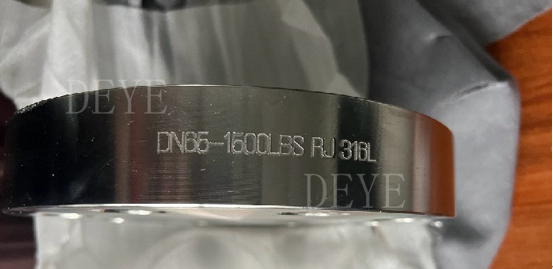

Flange Photos for shipment

Slip on flanges, CL150LBS, threaded Flanges, 1500LBS RJ flanges, CL2500LBS Weld Neck flange, etc.

DEYE PIPING INDUSTRY CO., LTD. is a projects- Oriented company integrated with

Design, manufacture and Marketing in Piping Industry for Oil gas water. We started to cooperate the piping projects Contractors since year of 2004. During twenty years, we have successfully participated in different projects in Egypt, United Arab Emirates, Saudi Arabia, Turkey, Italy, France, Spain, KZ(Kazakhstan), UZ (Uzbekistan), Russia, Maylasia, Singapore, Thailand. etc.

The products we can supply includes Pipes fittings, flanges, fasteners, pipes& Tubes, Industry valves and valve accessories.

The material we can supply includes:

Stainless Steel304, 304L, 304H, 316, 316L, 316H, 310, SS321, SS321H, 347, 347H, 904L

Super Duplex SS 2507, DSS2205, UNS31803 UNS32750， UNS32760

1.4301,1.4306, 1.4401, 1.4435, 1.4406, 1.4404， 1.4462， 1.4410， 1.4501

Carbon Steel A234 WPB, WP5, WP9,WP11, WP22, A420WPL6, A420WPL8

ST37.0,ST35.8,ST37.2,ST35.4/8,ST42,ST45,ST52,ST52.4

STP G38,STP G42,STPT42,STB42,STS42,STPT49,STS49

WCB, A105, WCC, WC5, WC6, WC9, W12, LCB, LCC.

We deliver a full suite of flow management solutions that bring vital infra-structure to local communities around the globe. Partnering with customers, we help to keep their operations running safely, minimize downtime and enhance lifecycle performance. Together, we are

helping to create a more sustainable to-morrow.

Why Deye Piping Industry?

As a global supplier for industrial Pipeline Projects, DEYE Piping Industry Co., Ltd is is dedicated and experienced to provide the contractors, sub-contractors, end users with the best possible products and solutions.

How to find the right products？

Our Engineers will check the technical requirement carefully as per projects requirement to guarantee the products meet the standard required and suggest the most suitable solution if any deviation between our products and the technical specification sheet of the project demand. We have more than 200 Selected suppliers around China and we have one workshop for customized products. DEYE PIPING is professional and resourceful enough to find the right Products for you.

Worry about the product quality?

Deye Piping Industry Co., Ltd has an experienced QC team, The QC team test the orders strictly as per ITP, Customers can get the photos and videos from beginning of the orders include Raw Material Test, Heat treatment Supervision, Machining, Assemble, Marking checking, Dimension Checking, Surface Treatment, hydraulic Test, other NDT test as per contract, Package, Loading.

How to assist the pipeline projects?

During the preparation of the tender. Deye Piping starts to involve in the tenders and assist the clients from Budget .We are well eauipped with all the required documents and certifcations and authorization letter and familiar with whole processes of any tender. After done all the preparation, Deye Piping provides technical support to clients and supply 24-hour consultant services to any emeroency problem. With our abundant experiences in tender projects,  we have helped our clients and ourselves win tender in oil & gas proiects. Sea and Marine Projects, Electricity power proiects. construction projects, Water treatment Plants, chemical industry projects etc. and also we build long term cooperation relationship with those reputed enterprises.
